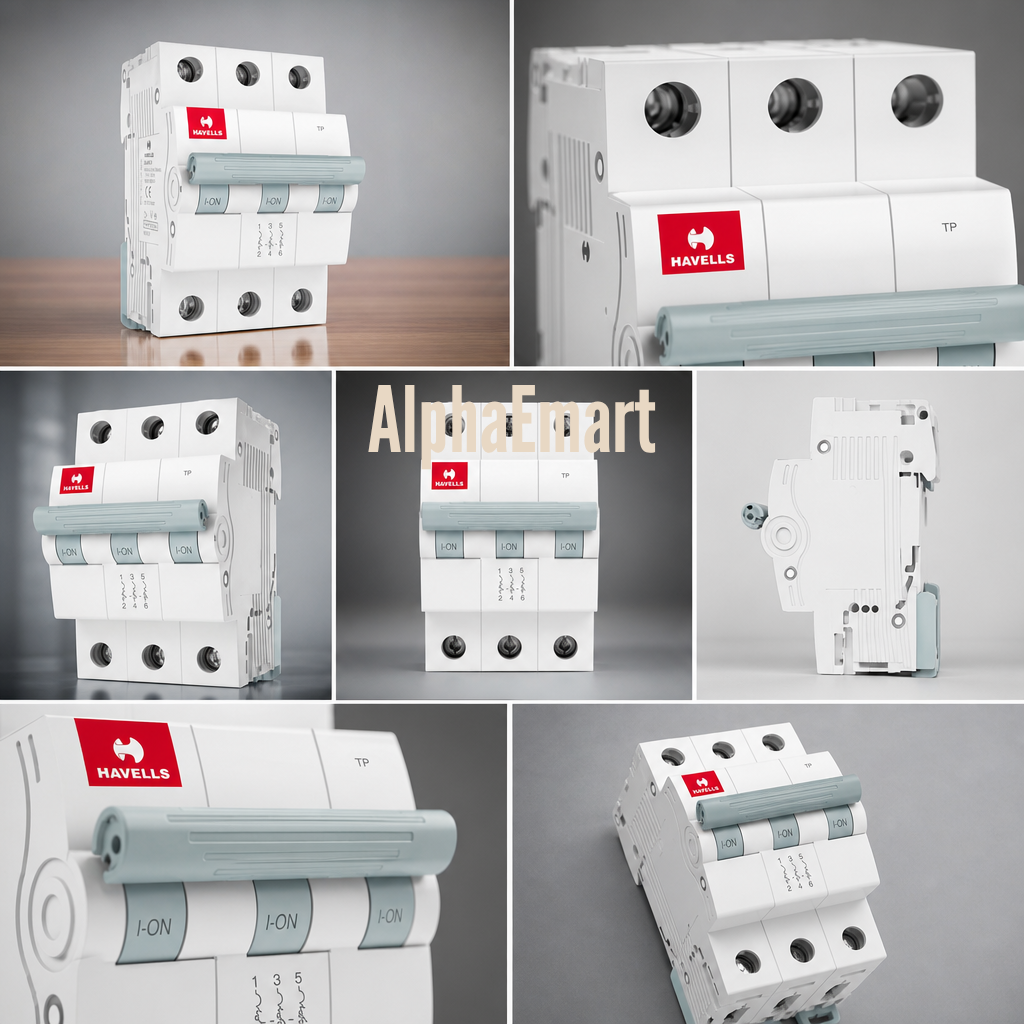

Havells TPN MCB 'C' Curve • 63 A • 3P+N

Add reliable, code‑compliant protection to your distribution board without sacrificing space or serviceability. The Havells BCP-1 DHMGCTPF063 is engineered to deliver fast, accurate tripping for overloads and short circuits — especially on motor and other inductive loads — while staying compact and easy to install.

Product at a glance

• Type — TPN MCB ('C' curve, thermal‑magnetic trip)
• Rating — 63 A (3P+N)
• Standards — IS/IEC 60898 compliant
• Breaking capacity — 10 kA (robust short‑circuit withstand)
• Mounting — DIN‑rail (35 mm) clip‑on for quick installation
• Housing — Flame‑retardant thermoplastic, IP20 protection
• Operating range — designed for typical electrical systems at 240/415 V~, 50 Hz

Key features

• C‑curve magnetic characteristic — tuned for motor and inductive loads, reduces nuisance tripping while protecting against high inrush currents.
• Thermal‑magnetic trip — combines precise overload protection with fast short‑circuit interruption.
• High interruption capacity (10 kA) — protects panels and downstream equipment during severe faults.
• Compact DIN‑rail design — saves panel space and simplifies retrofits or new installations.
• Durable construction — flame‑retardant body and secure terminal clamps for reliable long‑term performance.
• Wide terminal capacity — accommodates common conductor sizes for flexible wiring.

Why this breaker stands out

• Reliable protection for inductive circuits — the C‑curve prevents false trips on motors and compressors.
• Code‑aligned safety — manufactured to IS/IEC standards for peace of mind during inspections.
• Easy to install and maintain — clip‑on mounting and sturdy terminals reduce installation time and rework.
• Built for real environments — works across standard ambient conditions and offers consistent performance under load.

Ideal for

• Commercial distribution boards and panel feeds
• Motor feeders, HVAC, pumps, compressors
• Industrial and light‑industrial electrical systems
• Retrofit/upgrades where space and dependable trip characteristics matter
